- Destination and use

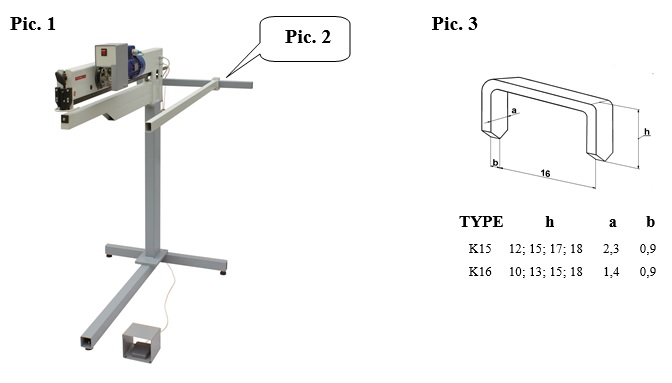

Stapler for packagings T-18/1000 is the professional machine, using by most of packaging’s manufacturers. It staples the corrugated cardboards 2; 3; 5-stratified, solid cardboards and elements made from multi-plies.
Standard equipment: This machine stitches wider staples type: K15 (for corrugated cardboards).
Extra equipment: in segment type: K16 for massive materials – hard, it stitches by tight staples type: K16.
If you wish, the stitching machine (but specially equipped) can stitch by thin staples type: K16. - Technical details:
Power supply – motor/0,18 kW
Electric supply – 230V
The frequency of net – 50 Hz
The level of acoustic pressure – < 70 dB(A)
Weight – 60 kg
Dimensions: (width x length x height) – 900 x 1390 x 1450 mm - Exploitation parameters:
– output – 140 staples/min.,
– frequency of stitch – singly or series
– capacity of magazine with staples type K15 – 550 pieces
– capacity of magazine with staples type K16 – 990 pieces (for changeable segment)
– the position of staple towards box side – perpendicularly,
– stitch outreach – 1000 mm
– closing staple – on matrix
– feeding of the material – handy,
– the way of start the machine – by foot - Additional equipment:
• Changeable stitching segment type K16 (for tight staples type K16)
• Supportive arm pic. 2 (for big boxes).
