REFURBISHED/USED MACHINES
We offer second hand machines:
INTROMA,
POLAR,
PERFECTA,
WOHLENBERG,
SCHNEIDER SENATOR,
KOLBUS,
MULLER MARTINI,
DUPLO,
HORIZON,
MECCANOTECHNICA,
SMYTH,
HORAUF,
OSCHNER,
RILECART,
RENZ,
JAMES BURN,
KUGLER WOMAKO,
NOW IN OUR OFFER
STITCHING MACHINE INTROMA ZD-2SR
COMPLETELY REFURBISHED AND NEWLY PAINTED AS NEW MACHINES
| Standard Staples |
Can be operated (delivered with the machine) |
| Loop (Omega) |
Can be operated as OPTION |
Productivity ( speed of the machine) |
up to 210 staples per minute |
| Max thickness by means of one closed staple | 25 mm |
| Max thickness by stabbing | 40 mm |
| Max thickness when brochure stitching | 8 mm |
| Min thickness | 2 sheets |
| Wire diameter range | 0,5-1,0 mm |
| Internal width of staple | 13 mm |
| Wire consumption per staple | 25-73 mm |
| Comfortable position of table | 820 mm high |
| Power requirement | 0,4 kW |
| Power supply | 3x 380 V-three phase or 230 V one phase |
| Frequency | 50 or 60 Hz |
| Control voltage | 24 V |
| Weight | 230 kg |
| Dimensions | 700 x 720 x 1245 mm |
| Height of the table | 820 mm |
| Single cycles or continuous stitching operation | Yes |
| Gross weight | 300 kg |
| Dimensions of packaging | 80 x 140 x 85 cm |

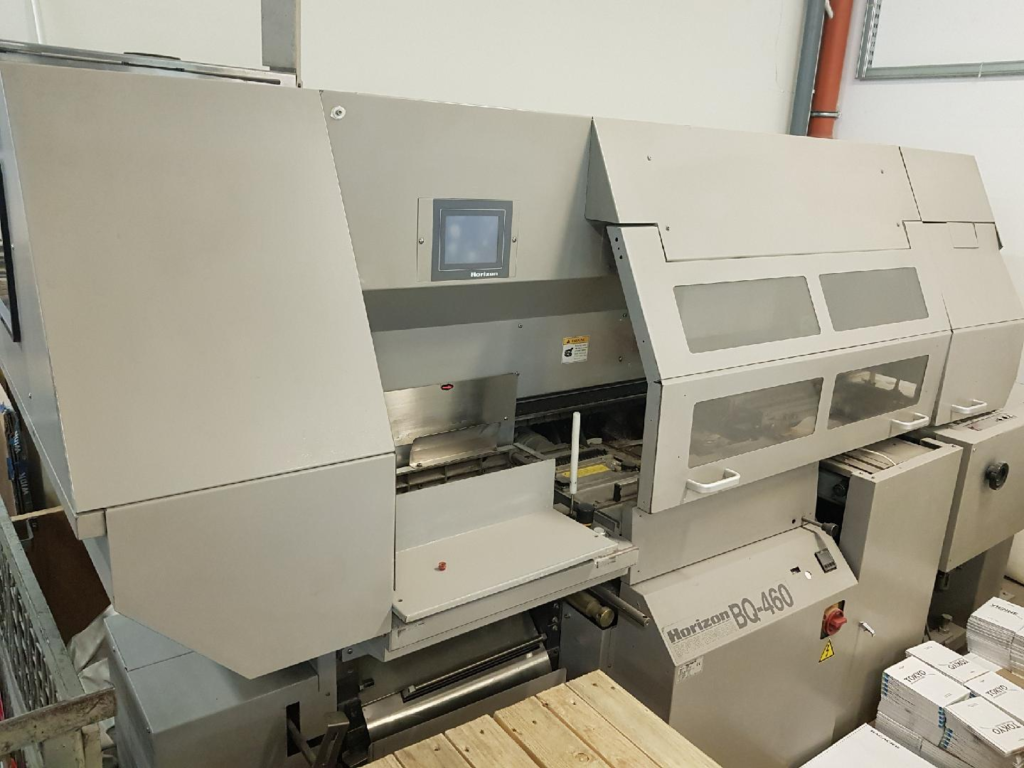

Horizon BQ460, age 2003
Equipped with:
- Size max: 320 x 320 x 55 mm
- 4 clamps
- Hot melt spine and side glue
- Milling station
- Touch panel
- Cover feeder with creasing
- Dust extractor
- Speed max 800 books/h

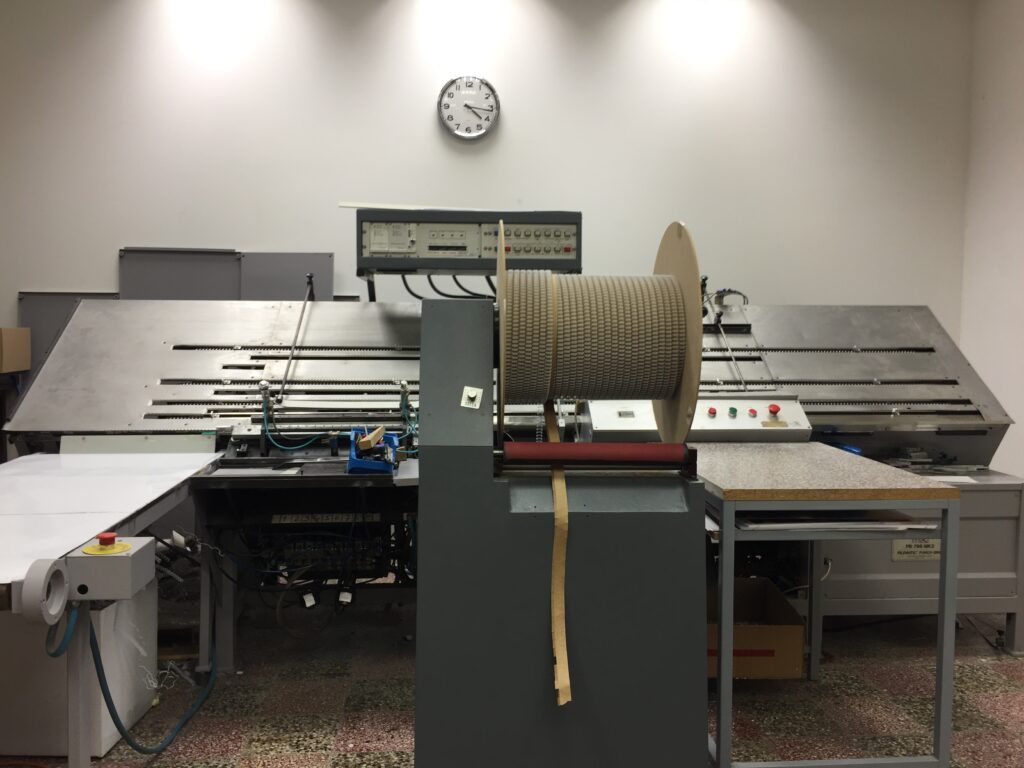

Automatic perforating and binding line RILECART PB-796
Year of production 1983
- Condition: excellent, after complete refurbishment, new central engine, new chains
- Maximum bundle format: 600mm x 700mm
- Minimum bundle format: 160mm (perforation) x 120mm
- Equipment:
perforating unit 3.7 x 4 mm, 3: 1 „, l = 600, hook for cut 19mm – 1pcs
o Closing set for spiral diameter of 1/4 ”
o Closing set for spiral diameter 5/16 ”
an automatic 70mm hook vibratory feeder
an automatic spiral unwinder with winding separation paper
o Conveyor belt output – no drive
RILECART 500
Max length of binding 500 mm
Max thicknes of binding 11,5 mm
One set for punching included
Capacity 1000 books/hour
Smyth F180 4D
Equipped with:
Size max 420×320 mm
Size min 140×80 mm
Speed max 180 C/min
4D feeder equipped with:
- 4+4 opening
- lap opening with photocell
- Automatic sucker and position setup
OMRON computer
Automatic sewer setup
10” operating panel
Thread looping with trimming
Delivery table with book block separation
Broken thread and missing signature control
Machine is completely rebuilt by the producer, like new!
